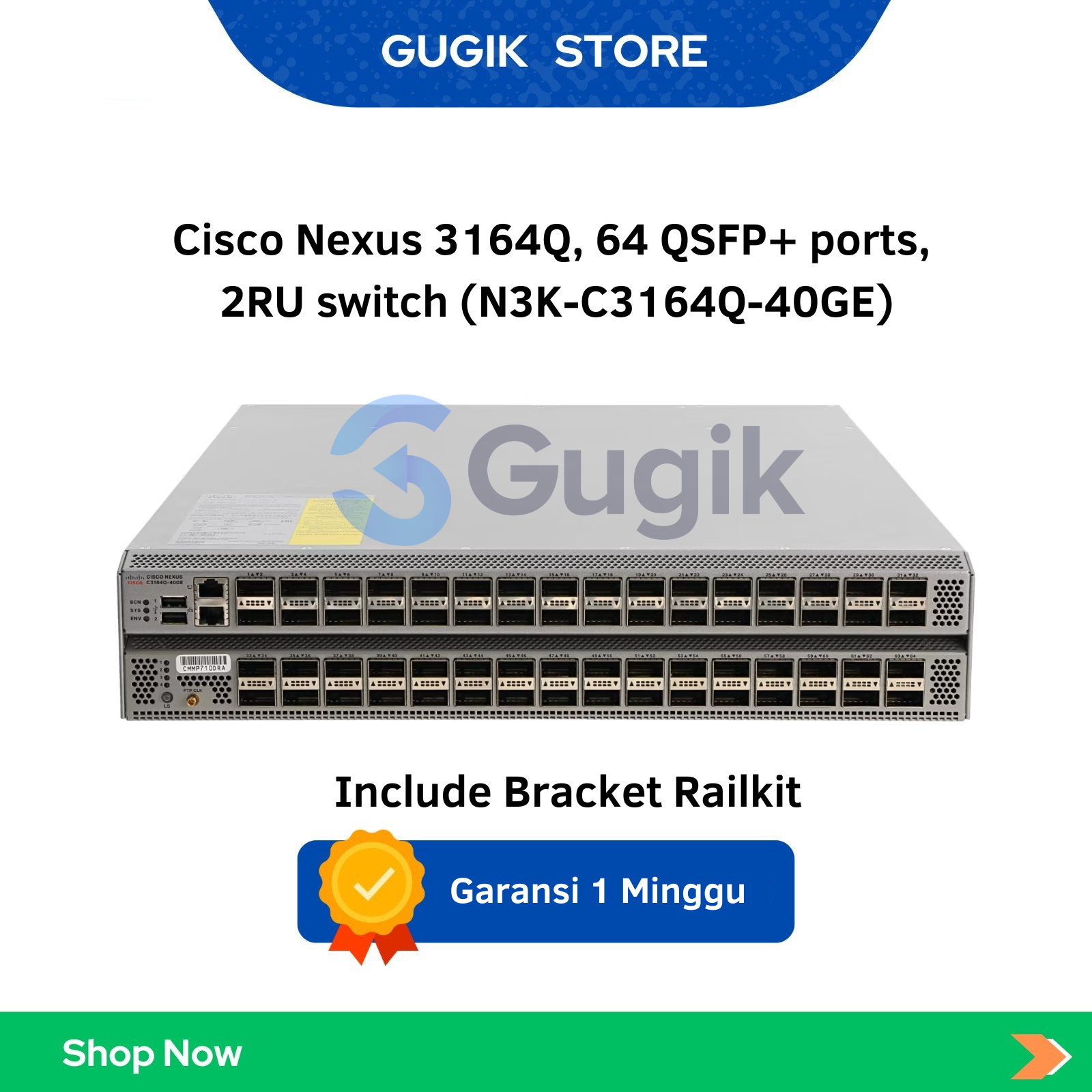

Cisco Nexus 3164Q, 64 QSFP+ ports, 2RU switch (N3K-C3164Q-40GE)

Spesification :

Physical

• 2 RU fixed form-factor switch
• 64 QSFP+ ports; each supports native 40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes
• 2 redundant power supplies
• 3+1 redundant fans
• Management, console, and USB flash-memory ports

Performance

• 5.12 Tbps switching capacity
• Forwarding rate up to 3.8 bpps
• Line-rate traffic throughput (both Layer 2 and 3) on all ports
• Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)

Hardware tables and scalability

Power

AC PSUs

Cooling

Sebelum membeli: konfirmasikan kompatibilitas dengan tipe server/perangkat Anda dan ketersediaan stok ke CS via WhatsApp sebelum memesan.

Number Of Vlans	MSTP: 4096
Number Of Spanning-tree Instances	MSTP: 64, RPVST+: 507
Routing Table	Maximum number of longest prefix match (LPM) routes 128,000, Maximum number of IP host entries 120,000, Maximum number of MAC address entries 96,000
Number Of Etherchannels	256
Number Of Ports Per Etherchannel	32
Buffer Size	48 MB shared
System Memory	16 GB
Frequency	50 to 60 Hz, 50 to 60 Hz
Power Supply Types	AC
Typical Operating Power	803 Watts (W) with SR4 optics at 100% load; 2 PSUs
Maximum Power	1100 Watts (W)
Input Voltage	200 to 240 VAC
